STRUCTURAL & ARCHITECTURAL
DRAWING SERVICES WITH THE PERSONAL TOUCH

OFFERING BOTH 2D & 3D MODELLING AND DRAWING CAPABILITY WITH OVER
20 YEARS EXPERIENCE IN THE CONSTRUCTION INDUSTRY

Personal Round-The-Clock Service

We offer a personal one-to-one personal service for all customers on all projects from small to large on any structural and architectural project from simple house extensions to major developments in the residential, retail, commercial and industrial sectors.

Drawing and management services at affordable prices

In this day and age cost is a major factor for any customer, which we are fully aware of. We keep our costs low and with a professional touch.

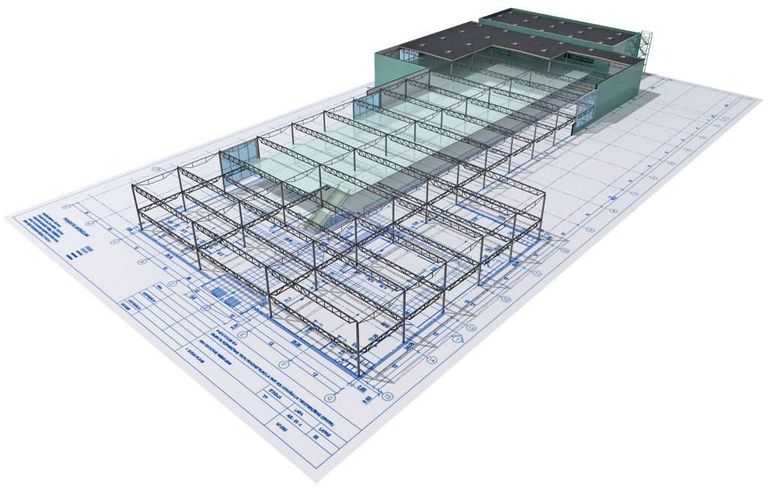

We use the latest software for 2D drawings and 3D BIM coordinated steelwork models & drawings.

Business Capabilities:

1) Creation of 2D/3D structural and civil engineering drawings.

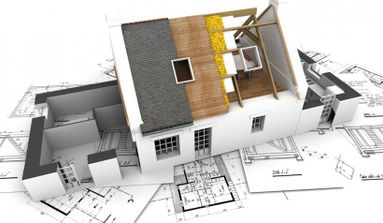

2) Creation of 2D planning drawings for residential projects ranging from small house extensions to full house plans.
3) Creation of 2D/3D industrial, retail and commercial planning drawings.
4) Creation of 3D tender models and material lists for both structural steelwork and concrete/rebar.
5) Concrete rebar detailing from structural/civil engineers designs.
6) Full planning & building regulations applications.
7) Creation of engineers design layout drawings from calculation packages in both 2D/3D formats.

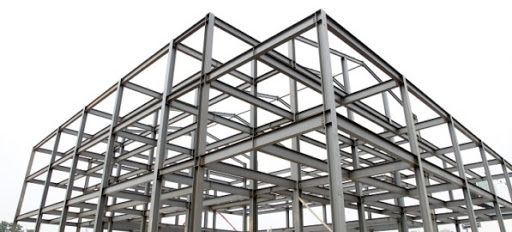

8) Full steelwork fabrication detail drawing packages, including material lists and NC data.

Efficiency

This is key for all customers and projects, we always endeavour to keep timescales to a minimum to achieve our goals and keep projects progressing with minimal delays.

Dependability

Our customers can rely on an friendly, reliable & efficient service from start to finish.

Our promise

Reliability

Fast, reliable
service

This is the fundamental goal for our business, to complete projects with minimal fuss and as quickly as possible.

Project Managament

Expert
consulting

We treat every project and customer in a professional manner with no shortcuts and communication is key.

Contact Us:

Should you have any questions please contact us on:

Director: James Grainger

E-mail: james.grainger@jagtechnicalserviceslimited.co.uk

Phone: 07549706774
